SKU: UDK1
From the creators of Qorvo's DWM1001C and PANS RTLS

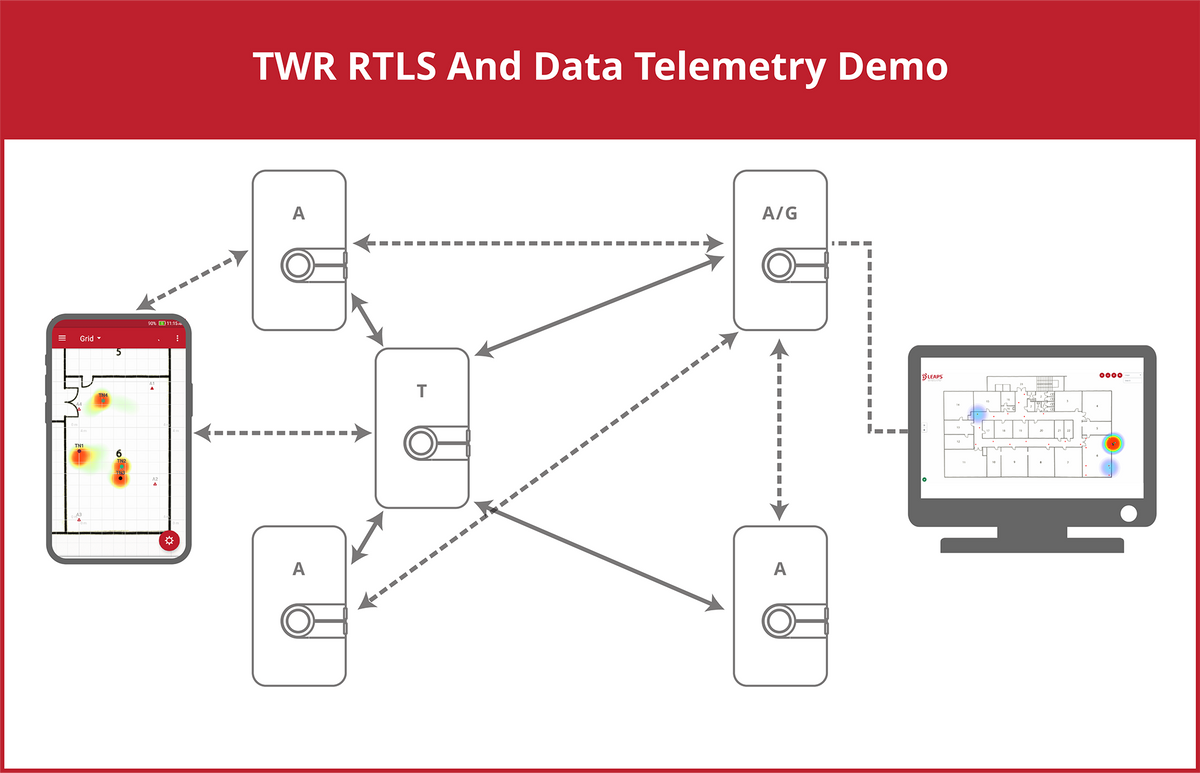

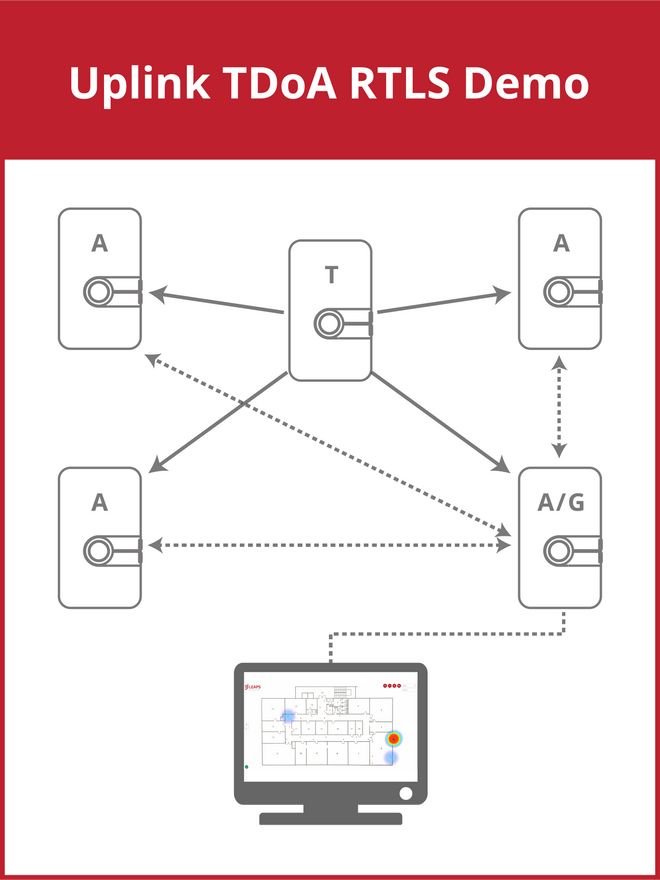

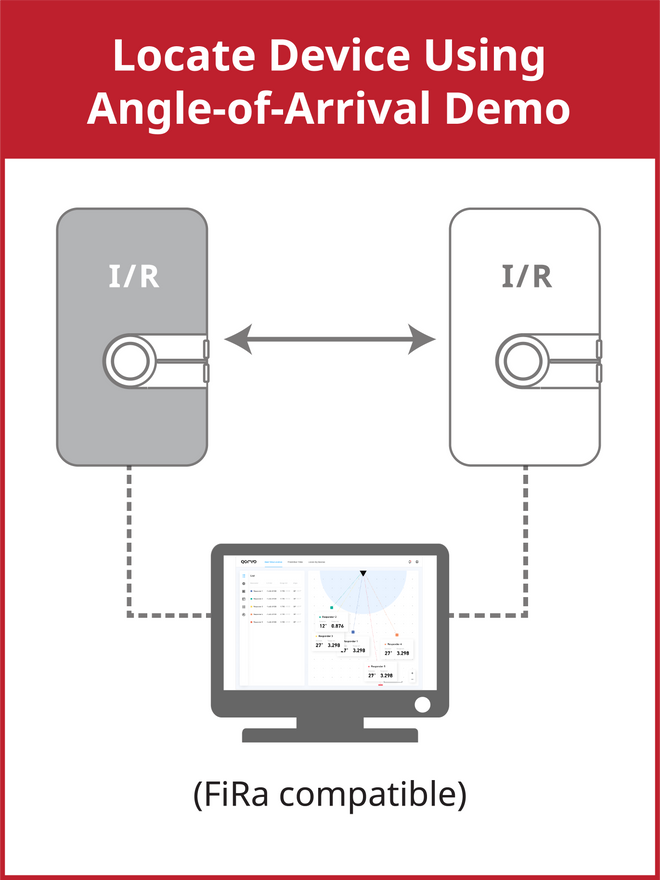

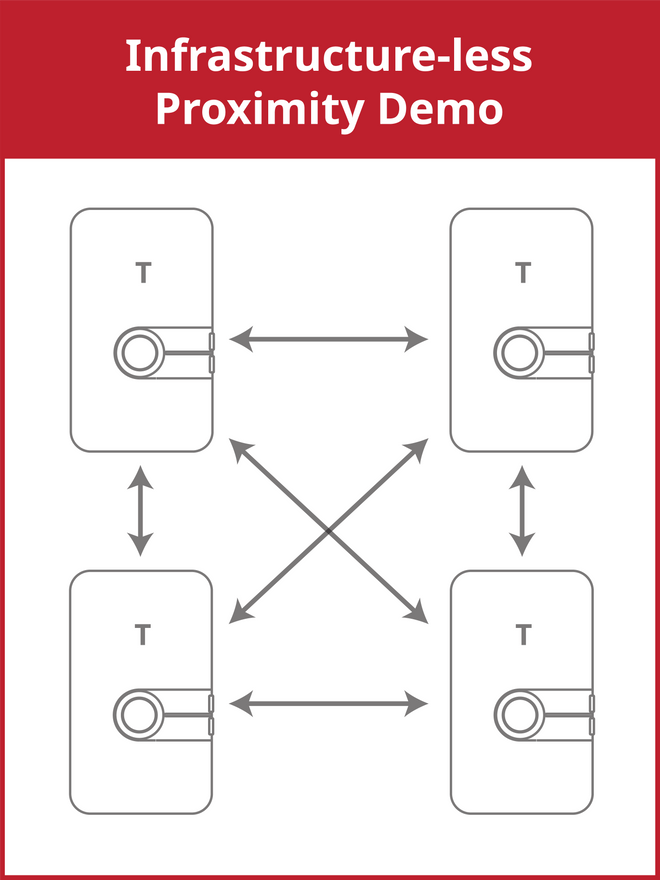

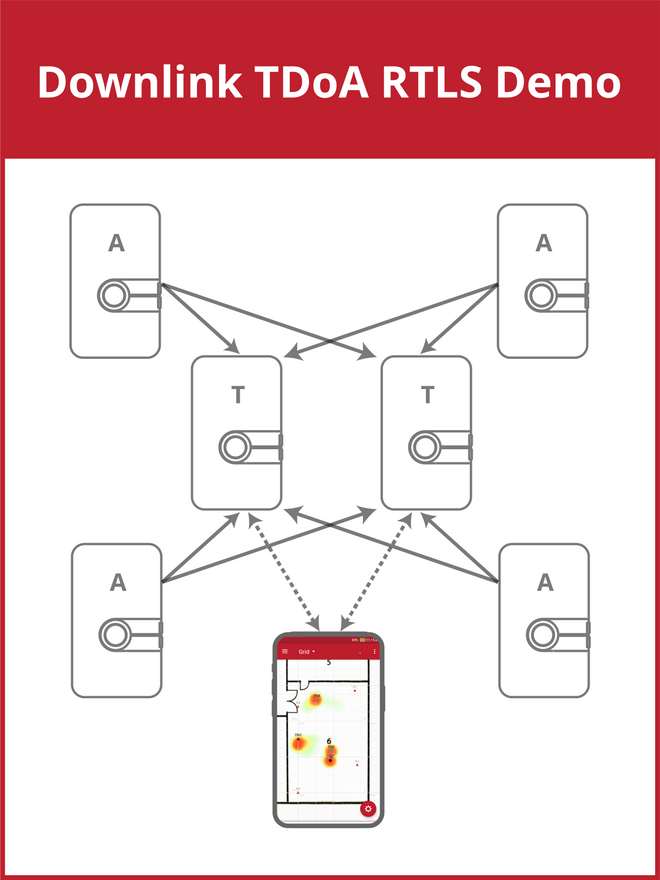

Demo Kit Features Devices with preloaded all-in-one firmware stack that provides all possible UWB demos from Nearby Interaction with an iPhone, Angle-of-Arrival location, infrastructure-less proximity between the Tags, real-time location and data telemetry using Two-Way Ranging, Downlink TDoA and Uplink TDoA.
To be used as a Tag, Anchor and Gateway in a Real-Time Location System using UWB (Ultra-Wideband)
Specifications

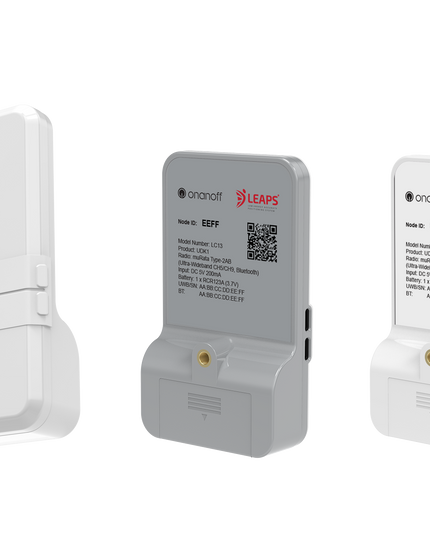

Based on muRata Type-2AB SIP (MCU nRF52840 with Bluetooth, UWB QM33120W IC with Japan support compliance, LIS2DW accelerometer, crystals and internal power regulators)
Ultra-wideband with integrated non-AoA and AoA antennas. Supported UWB channels: 5 (6.5 GHz) and 9 (8 GHz)
Bluetooth with integrated antenna
With LNA (Low Noise Amplifier) and PA (Power Amplifier) to increase the UWB range
2x Green LEDs and 1x RGB LEDs
3x multifunctional buttons
Haptic motor
Audio buzzer
Extra GPIOs for connection with external sensors or lOs
1x USB device connector
1x USB connector with integrated DAPLink debugger and Virtual COM
On-board connector for J-Link debugger
NFC tag antenna connector
Battery: replaceable RCR123A 3.7V (the same as for the MDEK1001). Battery not included.
